TECHNOTHERM Thin-Bed Heating Mat Premium Set WSF

Series Thin-Bed Heating Mat Premium SET with DSF Thermostat

The Premium floor heating system from TECHNOTHERM is an electric floor heating system for installation directly beneath the floor covering and ensures pleasantly warm surfaces. Thanks to its very low installation height of only 3 mm, it is ideal for renovations and refurbishments. Heat is distributed evenly throughout the room via radiation and convection. The thin-bed heating mat is designed for a heating area of 50 cm x 200 cm [160 W/m²] and is supplied including a 4 meter connection cable and the WSF thermostat, which enables time- and temperature-controlled regulation. The maintenance-free solution requires no water, pump, or manifold and can be easily installed in tile adhesive or leveling compound. The back is fitted with a self-adhesive carrier mat. The smart WSF thermostat included in the set can be integrated via the free TUYA App.

High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.

Dust-tight & waterproof: IP67 protection rating – VDE certified for maximum operational safety.

Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Pleasant Warmth from Below

The electric floor heating distributes radiant heat across the entire floor surface. Living comfort and well-being increase. Thanks to the large-area heat output, room temperature can be reduced by approximately 3 °C, lowering energy consumption without sacrificing comfort.

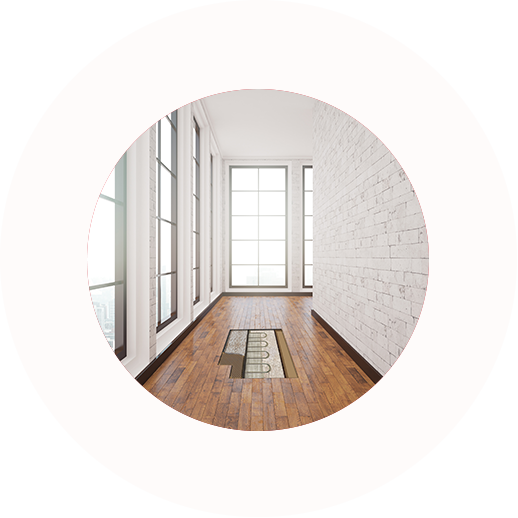

Ideal for New Construction and Renovation

The Premium heating mat serves as direct heating in new construction or as comfortable floor temperature control in existing building renovations. It is installed directly beneath the floor covering, suitable for tiles, natural stone, parquet, and appropriate carpets. The low installation height fits well into thin floor constructions.

Quick Installation and Convenient Control with the Tuya APP

The free Tuya App enables control from “anywhere”.

Special features of partial storage heating

Constant heat, robust design, smart control

Uniform heat distribution – The spot-welded ribs ensure constant convection and improve heat emission across the entire surface of the device. At the same time, this process increases the stability and service life of the radiator.
Long-lasting storage effect – The integrated fireclay storage core absorbs energy and releases it evenly over several hours – even during intermittent power interruptions.
Convenient remote control – Temperature and schedules can be easily regulated via smartphone or desktop – ideal for individual use and efficient operation. This ensures maximum control – even when on the go.

Electric Floor Heating

Only 3 mm thick.

Even Heat Distribution

Combination of radiant and convective heat ensures even room temperature.

Low installation height of only 3 mm

Very flat design, ideal for renovations and refurbishments.

Tuya App Integration

Control via Tuya App possible

Adaptive Start Control

Automatically ensures floors are warm on time at the desired moment.

Maintenance-Free System

No water, pump, or manifold required.

Easy Installation

Can be installed directly in tile adhesive or leveling compound.

Graduated Heating Areas

Available for heating areas from 1.0 to 12 m² incl. 4 meter connection cable

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 1.0	0.16 kW	500 x 2000 mm	0.3 kg	143400710	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 1.5	0.24 kW	500 x 3000 mm	0.6 kg	143400715	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 2.0	0.32 kW	500 x 4000 mm	0.9 kg	143400720	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 3.0	0.48 kW	500 x 6000 mm	1.2 kg	143400730	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 4.0	0.64 kW	500 x 8000 mm	1.5 kg	143400740	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 5.0	0.80 kW	500 x 10000 mm	1.8 kg	143400750	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 6.0	0.96 kW	500 x 12000 mm	2.4 kg	143400760	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium WSF 7.0	1.12 kW	500 x 14000 mm	3 kg	143400770	Inquire now
TECHNOTHERM Dünnbettheizmatte Premium WSF 8,0	1,28 kW	500 x 16000 mm	3,6 kg	143400780	Inquire now
TECHNOTHERM Dünnbettheizmatte Premium WSF 9,0	1,44 kW	500 x 18000 mm	4,1 kg	143400790	Inquire now
TECHNOTHERM Dünnbettheizmatte Premium WSF 10	1,60 kW	500 x 20000 mm	4,7 kg	143400799	Inquire now
TECHNOTHERM Dünnbettheizmatte Premium WSF 12	1,92 kW	500 x 24000 mm	5,3 kg	143400712	Inquire now
