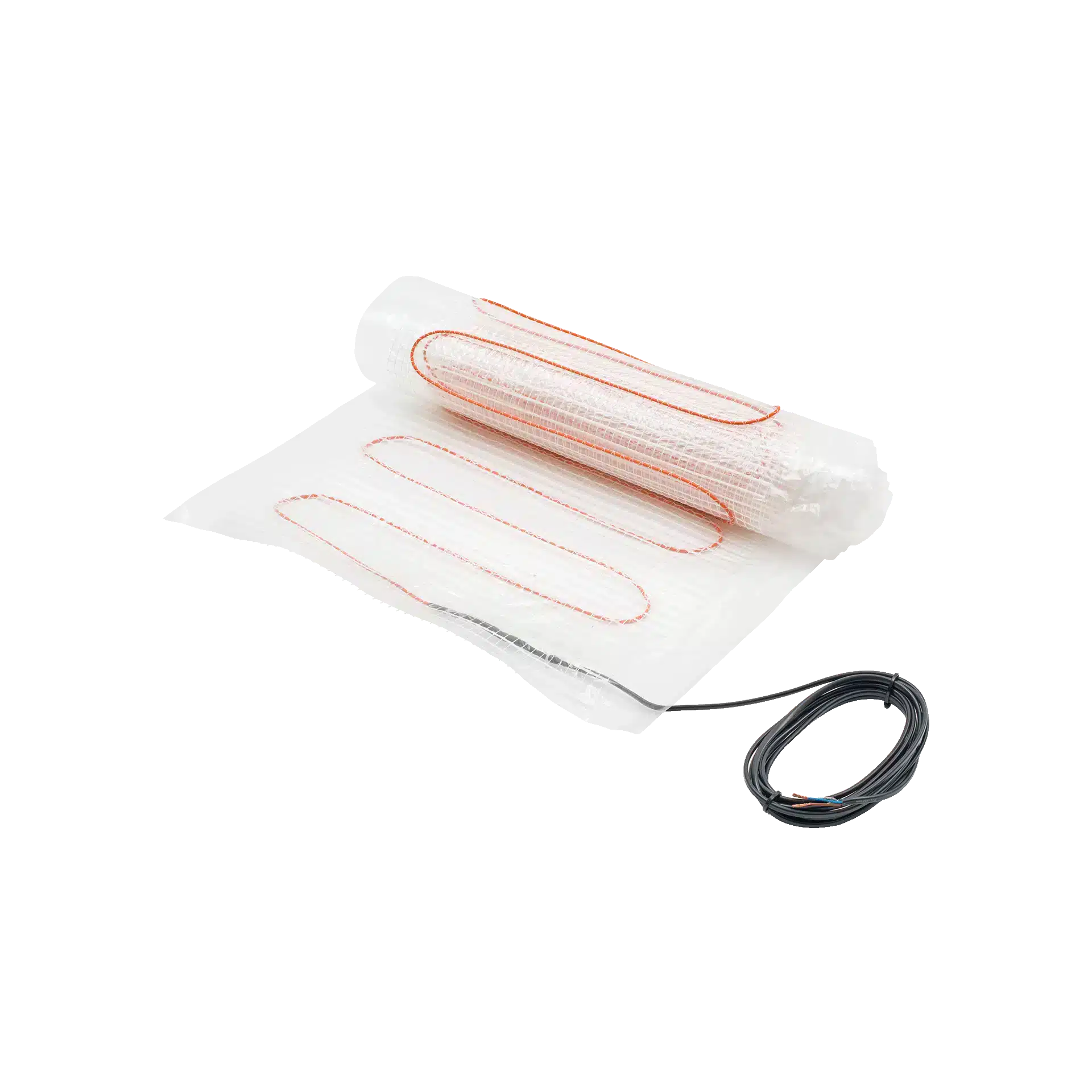

TECHNOTHERM Thin-Bed Heating Mat Premium Set DSF

Series Thin-Bed Heating Mat Premium

The Premium floor heating system from TECHNOTHERM is an electric floor heating system for installation directly beneath the floor covering and ensures pleasantly warm surfaces. Thanks to its very low installation height of only 3 mm, it is ideal for renovations and refurbishments. Heat is distributed evenly throughout the room via radiation and convection. The thin-bed heating mat is designed for a heating area of 50 cm x 200 cm [160 W/m²] and is supplied with a 4-meter connection cable and the DSF thermostat, which enables time and temperature-controlled regulation. The maintenance-free solution requires no water, pump, or manifold and can be easily installed in tile adhesive or leveling compound. The back is fitted with a self-adhesive carrier mat. The smart DSF thermostat included in the set can be integrated via the free TECHNOTHERM App (DSM Smartbox required).

High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.

Dust-tight & waterproof: IP67 protection rating – VDE certified for maximum operational safety.

Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

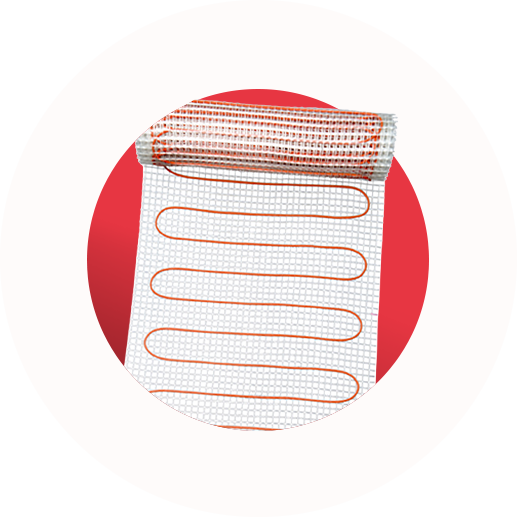

Pleasant Warmth from Below

The electric floor heating distributes radiant heat across the entire floor surface. Living comfort and well-being increase. Thanks to the large-area heat output, room temperature can be reduced by approximately 3 °C, lowering energy consumption without sacrificing comfort.

Ideal for New Construction and Renovation

The Premium heating mat serves as direct heating in new construction or as comfortable floor temperature control in existing building renovations. It is installed directly beneath the floor covering, suitable for tiles, natural stone, parquet, and appropriate carpets. The low installation height fits well into thin floor constructions.

Fast installation and convenient control with the TECHNOTHERM APP and the DSF thermostat

Control from “anywhere” is possible via the free TECHNOTHERM App.

Electric underfloor heating with smart DFS thermostat

Only 3 mm thin.

Even Heat Distribution

Combination of radiant and convective heat ensures even room temperature.

Low installation height of only 3 mm

Very flat design, ideal for renovations and refurbishments.

App Integration

Control possible via the TECHNOTHERM App

Adaptive Start Control

Automatically ensures floors are warm on time at the desired moment.

Maintenance-Free System

No water, pump, or manifold required.

Easy Installation

Can be installed directly in tile adhesive or leveling compound.

Graduated Heating Areas

Available for heating areas from 1.0 to 12 m² incl. 4 meter connection cable

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 1.0	0.16 kW	500 x 2000 mm	0.3 kg	143400810	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 1.5	0.24 kW	500 x 3000 mm	0.6 kg	143400815	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 2.0	0.32 kW	500 x 4000 mm	0.9 kg	143400820	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 3.0	0.48 kW	500 x 6000 mm	1.2 kg	143400830	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 4.0	0.64 kW	500 x 8000 mm	1.5 kg	143400840	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 5.0	0.80 kW	500 x 10000 mm	1.8 kg	143400850	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 6.0	0.96 kW	500 x 12000 mm	2.4 kg	143400860	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 7.0	1.12 kW	500 x 14000 mm	3 kg	143400870	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 8.0	1.28 kW	500 x 16,000 mm	3.6 kg	143400880	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 9.0	1.44 kW	500 x 18,000 mm	4.1 kg	143400890	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 10	1.60 kW	500 x 20,000 mm	4.7 kg	143400899	Inquire now
TECHNOTHERM Thin-Bed Heating Mat Premium DSF 12	1.92 kW	500 x 24,000 mm	5.3 kg	143400812	Inquire now
