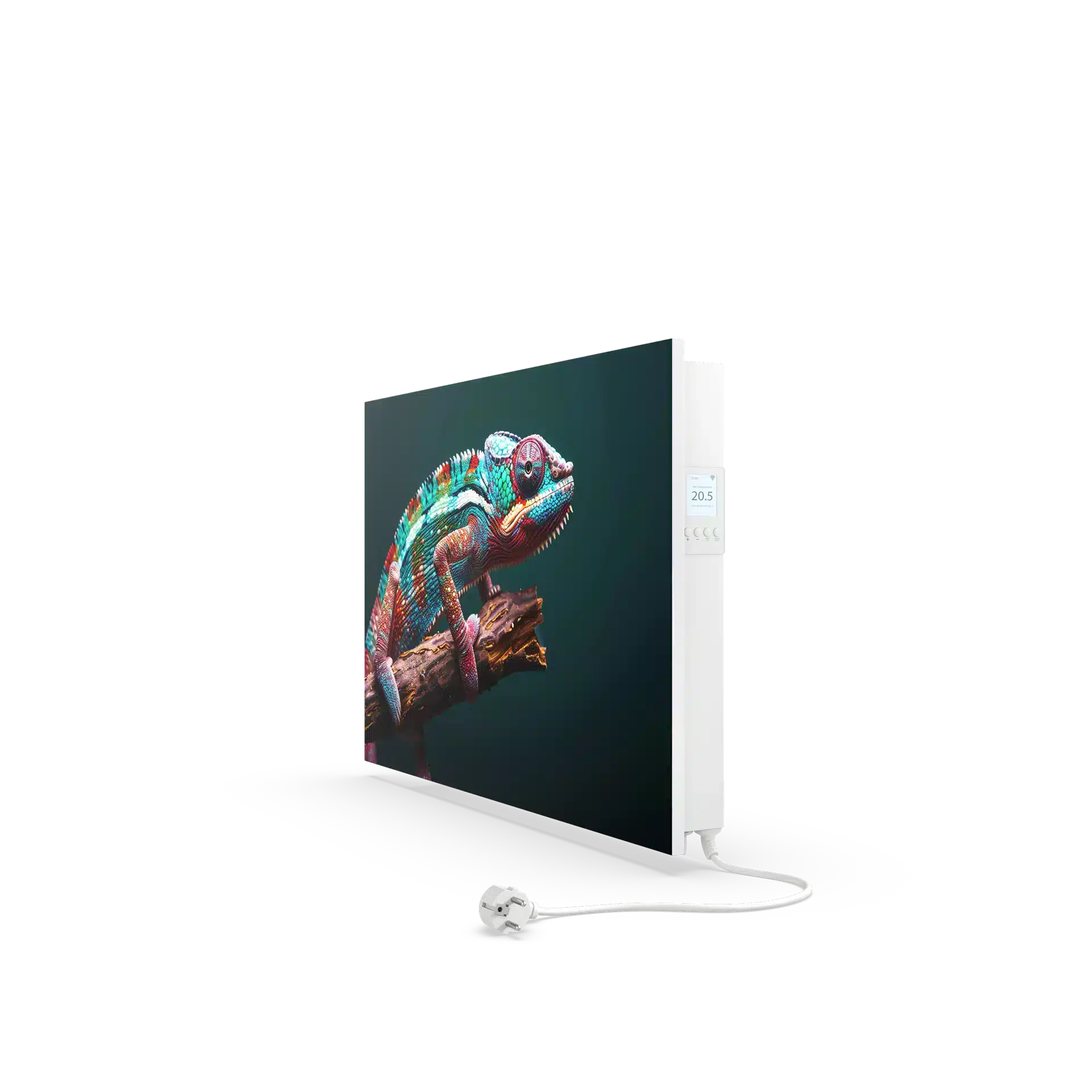

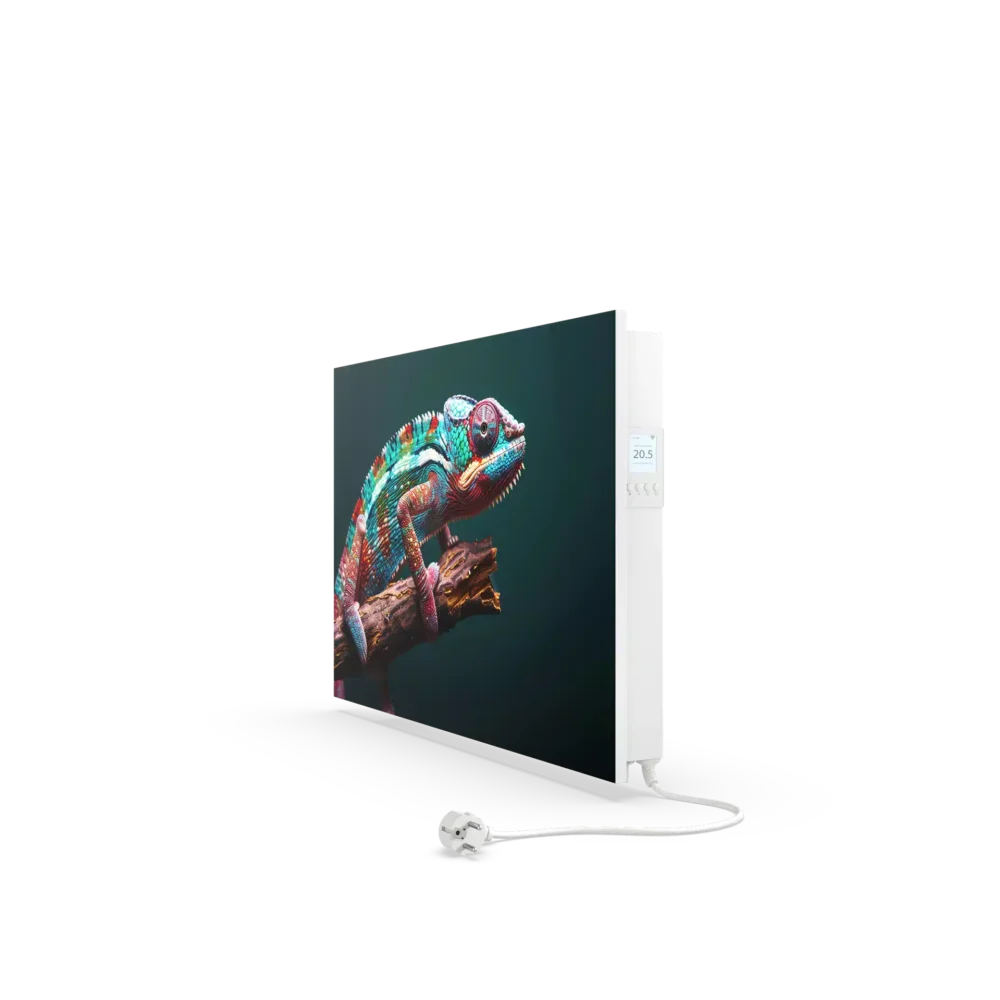

TECHNOTHERM SPH wall convector with motif

TECHNOTHERM SPH wall convector with motif

Series SPH-Z 750 wall convector with selectable thermostat and motif front

The TECHNOTHERM SPH wall convector with motif is a direct-heating convector with an aluminium heating element and an integrated special ceramic heat store for even, delayed heat release. The front can be customised with your own motif or an image from the TECHNOTHERM gallery. The robust metal housing mounts flat on the wall at approx. 8 cm deep. A side-mounted, pre-fitted thermostat of your choice handles control. Two independent safety cut-outs protect against overheating. Available in outputs from 750 W to 2.0 kW, ready to connect with plug and protection class I.

More Details
Inquire about Product
High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.
Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Description
Features
Functions
Specifications
Downloads
Further Information

Pleasant stored heat

Special heat storage stones store part of the heating energy and release it over a longer period. This ensures even temperatures and less cycling.

Slim on the wall, fits many rooms

SPH units are 8 cm deep, feature horizontal design stripes, and offer outputs from 750 to 2000 W. This makes the wall convector a good fit under windows or on narrow wall areas.

Control to suit your project

SPH plus with side control thermostat and up to nine programmes directly on the unit; SPH DSM with programmable digital thermostat, open-window function and app connectivity; SPH RF with integrated radio receiver for the TPF-ECO radio thermostat and TYDOM app. This gives you a choice of simple, smart or radio-controlled versions.

Rapid Direct Heat

The aluminium heating element provides instant warmth—ideal for rooms that need to heat up quickly.

Ceramic heat store for delayed heat release

The ceramic heat store retains heat and releases it with a delay—for longer-lasting, comfortable heating.

Individually printable front

The front can be printed with your own motifs or gallery designs—for a fully customised look.

Slim housing for modern wall mounting

The approx. 8 cm-deep metal housing blends discreetly into any environment and is perfect for wall installation.

Side-mounted thermostat (freely selectable)

Side-mounted thermostat, available in various versions—flexibly adaptable to your control system and comfort requirements.

Intelligent power adjustment

Automatic modulation of heating output, including programmes and open-window detection, ensures efficient operation.

High safety

Two integrated overheat protection systems ensure safe, reliable heating operation.

Power levels from 750 W to 2.0 kW

Output range from 0.75 to 2.0 kW, including plug connection (protection class I)—ready for immediate use.

Technical Data

ModelPerformanceDimensions (W x H x D)weight [approx.]Order numberInquire
TECHNOTHERM SPH 750 wall convector with motif0.75 kW750 x 500 x 90 mm18.3 kg429800100Inquire now
TECHNOTHERM SPH 1000 wall convector with motif1.0 kW750 x 500 x 90 mm18.3 kg429800101Inquire now
TECHNOTHERM SPH 1200 wall convector with motif1.2 kW750 x 500 x 90 mm18.3 kg429800102Inquire now
TECHNOTHERM SPH 1500 wall convector with motif1.5 kW1050 x 500 x 90 mm24 kg4298001043Inquire now
TECHNOTHERM SPH 2000 wall convector with motif2.0 kW1050 x 500 x 90 mm24 kg429800104Inquire now
TECHNOTHERM SPH H 1200 wall convector with motif1.2 kW500 x 1050 x 90 mm18.3 kg429800105Inquire now
