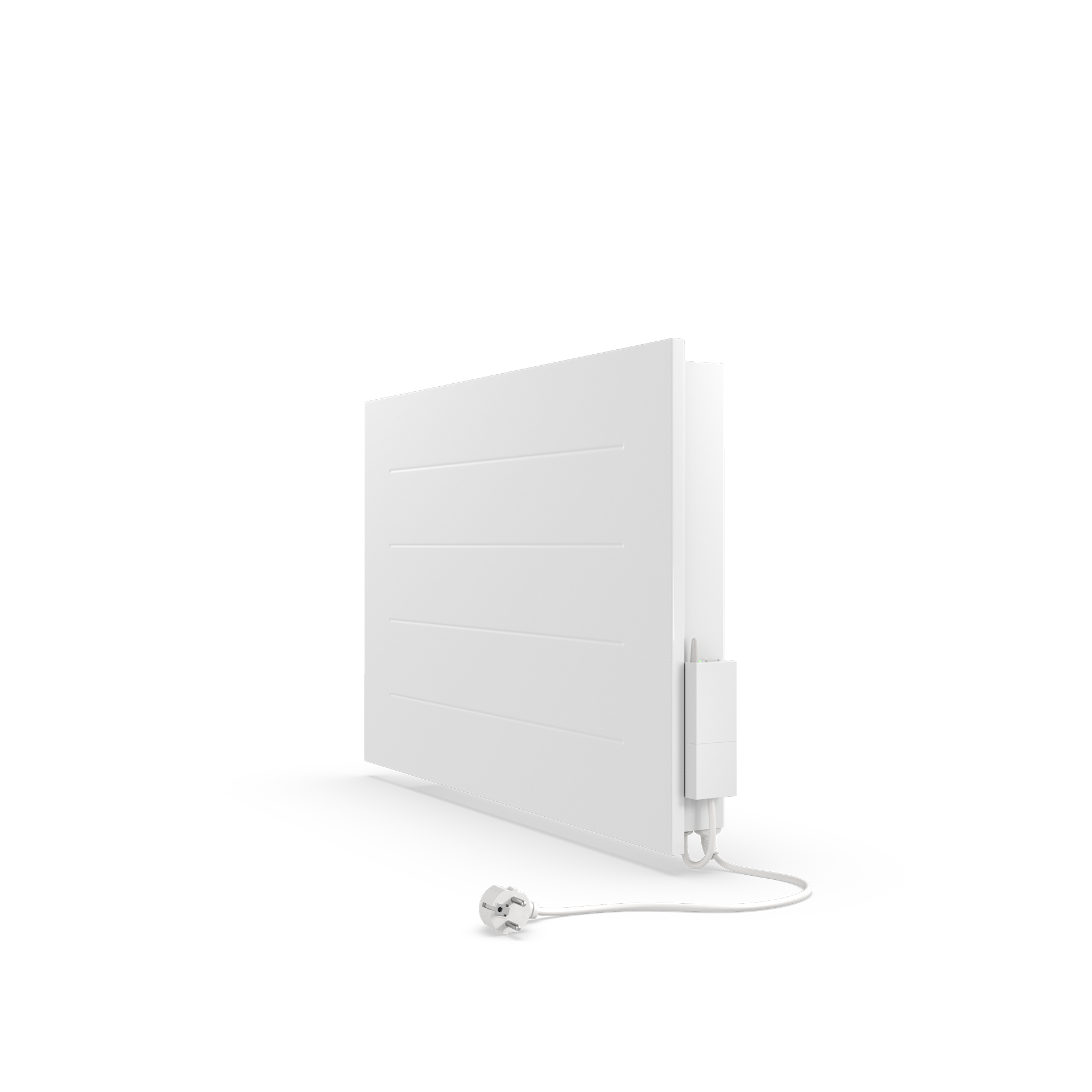

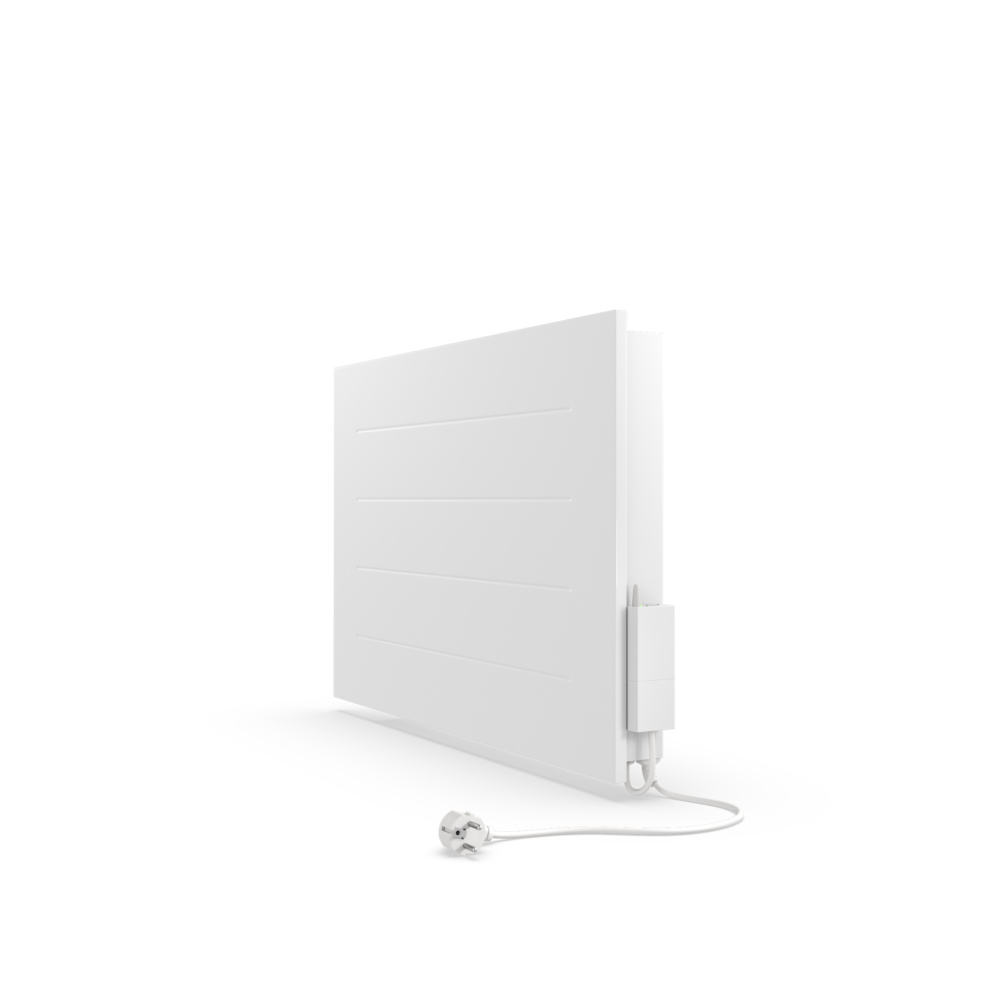

TECHNOTHERM SPH RF wall-mounted convector

TECHNOTHERM SPH RF wall-mounted convector

Series SPH 750 wall-mounted convector with RF receiver

The TECHNOTHERM SPH RF wall-mounted convector is a direct-heating convector with an aluminum heating element and an integrated special ceramic core for uniform, delayed heat release. The slim white metal housing is only approx. 8 cm deep and is ideal for wall mounting. A side-mounted RF receiver allows control via an external wireless room thermostat, e.g., TPF-Eco. Two independent safety monitors ensure reliable overheating protection. Available in power levels from 750 W to 2.0 kW, ready to plug in with Protection Class I.

More Details
Inquire about Product
High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.
Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Description
Features
Functions
Specifications
Downloads
Further Information

Pleasant storage heat

Special heat-retention stones store part of the heating energy and release it over a longer period. This ensures consistent temperatures and fewer cycles.

Slim on the wall, suitable for many rooms

SPH units have a depth of 8 cm, horizontal design stripes, and power outputs from 750 to 2,000 W. This allows the wall-mounted convector to fit perfectly under windows or on narrow wall surfaces.

Control options to suit the project

SPH plus with side-mounted control thermostat and up to nine programs directly on the device; SPH DSM with programmable digital thermostat, open-window function, and app connectivity; SPH RF with integrated radio receiver for the TPF-ECO radio thermostat and TYDOM app. This provides a choice of simple, smart, or radio-controlled versions.

Rapid Direct Heat

The aluminum heating element provides immediate, noticeable warmth – ideal for rooms that need to be heated quickly.

Ceramic storage for delayed heat release

The ceramic core reliably stores heat and releases it gradually for a pleasantly long-lasting heating effect.

Slim white housing

The white metal housing, approx. 8 cm deep, blends harmoniously and discreetly into bright room concepts – ideal for wall mounting.

Integrated RF receiver (side-mounted)

Enables wireless control via an external thermostat – flexible, reliable, and intuitive for everyday use.

Intelligent power adjustment

Automatic modulation of heating power, including programs and open-window detection for efficient, demand-based operation.

High safety

Two integrated overheating protection systems ensure safe and reliable operation at all times.

Power levels from 750 W to 2.0 kW

Wide power range from 0.75 to 2.0 kW, including plug connection (Protection Class I) – ready for immediate use.

Technical Data

ModelPerformanceDimensions (W x H x D)weight [approx.]Order numberInquire
TECHNOTHERM SPH 750 RF wall-mounted convector0.75 kW750 x 500 x 90 mm18.3 kg429754730Inquire now
TECHNOTHERM SPH 1000 RF wall-mounted convector1.0 kW750 x 500 x 90 mm18.3 kg429754731Inquire now
TECHNOTHERM SPH 1200 RF wall-mounted convector1.2 kW750 x 500 x 90 mm18.3 kg429754732Inquire now
TECHNOTHERM SPH 1500 RF wall-mounted convector1.5 kW1050 x 500 x 90 mm24 kg429754733Inquire now
TECHNOTHERM SPH 2000 RF wall-mounted convector2.0 kW1050 x 500 x 90 mm24 kg429754734Inquire now
TECHNOTHERM SPH H 1200 RF wall-mounted convector1.2 kW500 x 1050 x 90 mm18.3 kg429754735Inquire now
