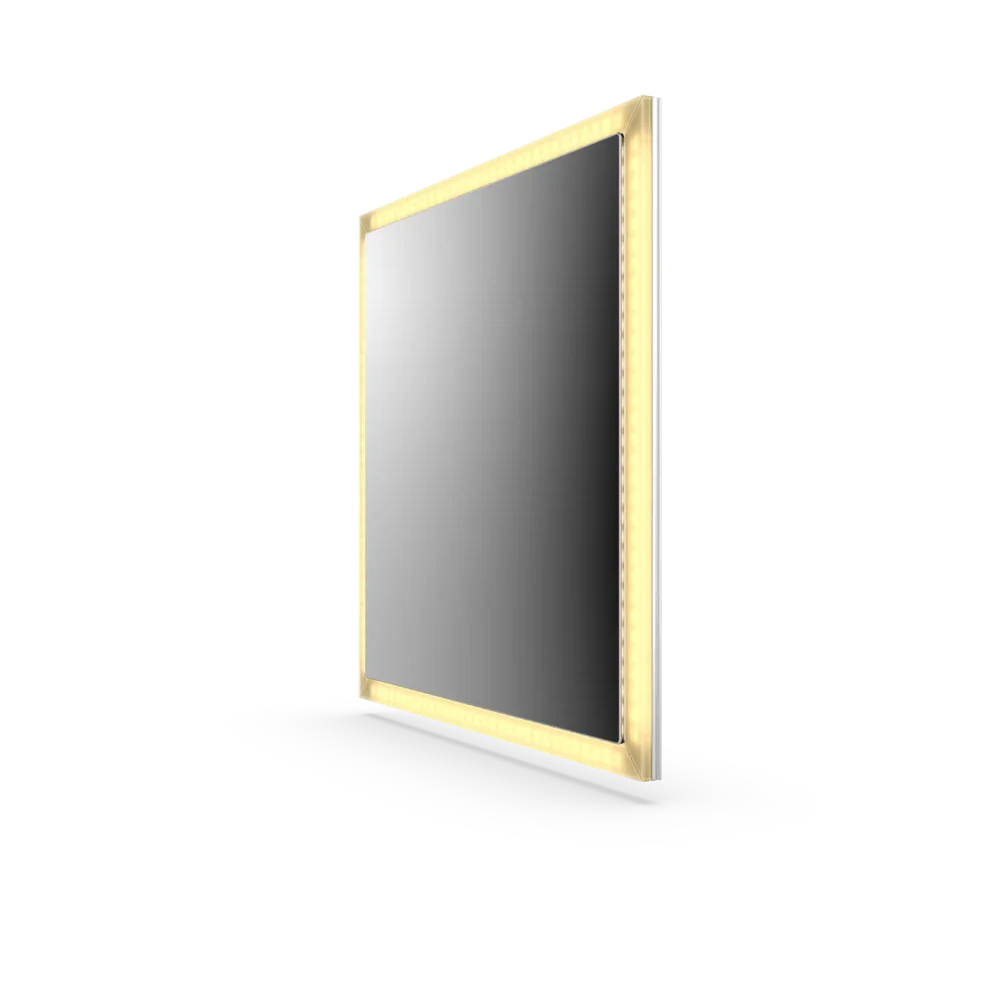

TECHNOTHERM Infrared Heater LED Deluxe 360 WW

Series ISP-LED Deluxe 360 WW

The TECHNOTHERM LED Deluxe 360 WW infrared heater combines efficient infrared radiant heat with atmospheric light design. The heated front surface ensures a dry, comfortable indoor climate and even heat distribution. The integrated warm white (2700 K) LED light frame is dimmable and creates pleasant light accents in the room. With power levels from approx. 0.36 to 0.90 kW, the heater is suitable for zone and room temperature control. It can be mounted on walls or ceilings, features concealed brackets, and offers ErP-compliant control via thermostat or radio system.

Tap icon/logo for more information

Pleasant, healthy warmth

ISP infrared heaters primarily emit radiant heat. They warm walls, floors, and furniture, which then evenly release this heat into the room. This feels similar to solar heat, without drafts and with stable humidity, and dust largely remains undisturbed.

Design object instead of radiator

LED versions transform the panels into visible design elements. Various sizes, colors, and motifs suit living rooms, bathrooms, offices, or practices. The panels are suitable for wall and ceiling mounting, horizontally or vertically.

Reliable control and Ecodesign compliant

All infrared heaters are delivered ErP-compliant. An industrial plug allows connection only in combination with suitable temperature control, such as room thermostats or radio/smart home solutions. This ensures operation within Ecodesign guidelines and prevents incorrect operation without control.

Infrared Radiant Heat

Pleasant infrared heat via the heated front surface for a dry, comfortable indoor climate.

Even heat distribution

Indirect air heating via warmed surfaces ensures uniform temperatures.

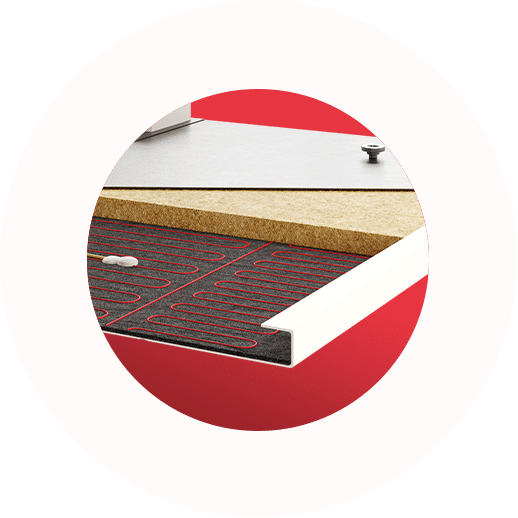

Rear thermal insulation

Rear insulation reduces wall losses and increases energy efficiency.

LED light frame

Frameless front with integrated LED light frame adds modern accents to the room.

Power Range

Power levels from approx. 0.36 to 0.90 kW for zone and room temperature control.

Flexible installation

Suitable for wall or, depending on the type, ceiling mounting, vertical or horizontal.

Concealed brackets

Concealed brackets for a clean look, optional accessories available.

Integrated radio receiver

Controllable via TPF-ECO, ECO interface or app for convenient control.

ErP-compliant operation

ErP-compliant operation only in combination with a suitable thermostat or radio system.

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM Infrared Heater LED Deluxe 360 WW	0.36 kW	650 x 650 x 30 mm	9 kg	880400360	Inquire now
TECHNOTHERM Infrared Heater LED Deluxe 540 WW	0.54 kW	950 x 650 x 30 mm	13 kg	880400540	Inquire now
TECHNOTHERM Infrared Heater LED Deluxe 720 WW	0.72 kW	1250 x 650 x 30 mm	16 kg	880400720	Inquire now
TECHNOTHERM Infrared Heater LED Deluxe 900 WW	0.9 kW	1550 x 650 x 30 mm	22 kg	880400900	Inquire now

More Products

TECHNOTHERM D-Basic Knee Heater

The TECHNOTHERM D-Basic knee heater generates direct infrared radiant heat that specifically warms legs and kn…

Go to Product

TECHNOTHERM Infrared Chalkboard Heater

The TECHNOTHERM infrared chalkboard heater combines efficient infrared radiant heat with functional design. It…

Go to Product

TECHNOTHERM Infrared Bathroom Heater X1 Z with towel rail

The TECHNOTHERM Infrared Bathroom Heater X1 Z with towel rail combines pleasant infrared radiant heat with fun…

Go to Product

TECHNOTHERM Desk Heater ISP

The TECHNOTHERM ISP 100 desk heater is a compact infrared supplementary heater for office and home office. It …

Go to Product

Electric Heating, simply better

installed. planned. invested.

Downloads

All information, such as installation and operating instructions as well as data sheets, can be found in our download area.
