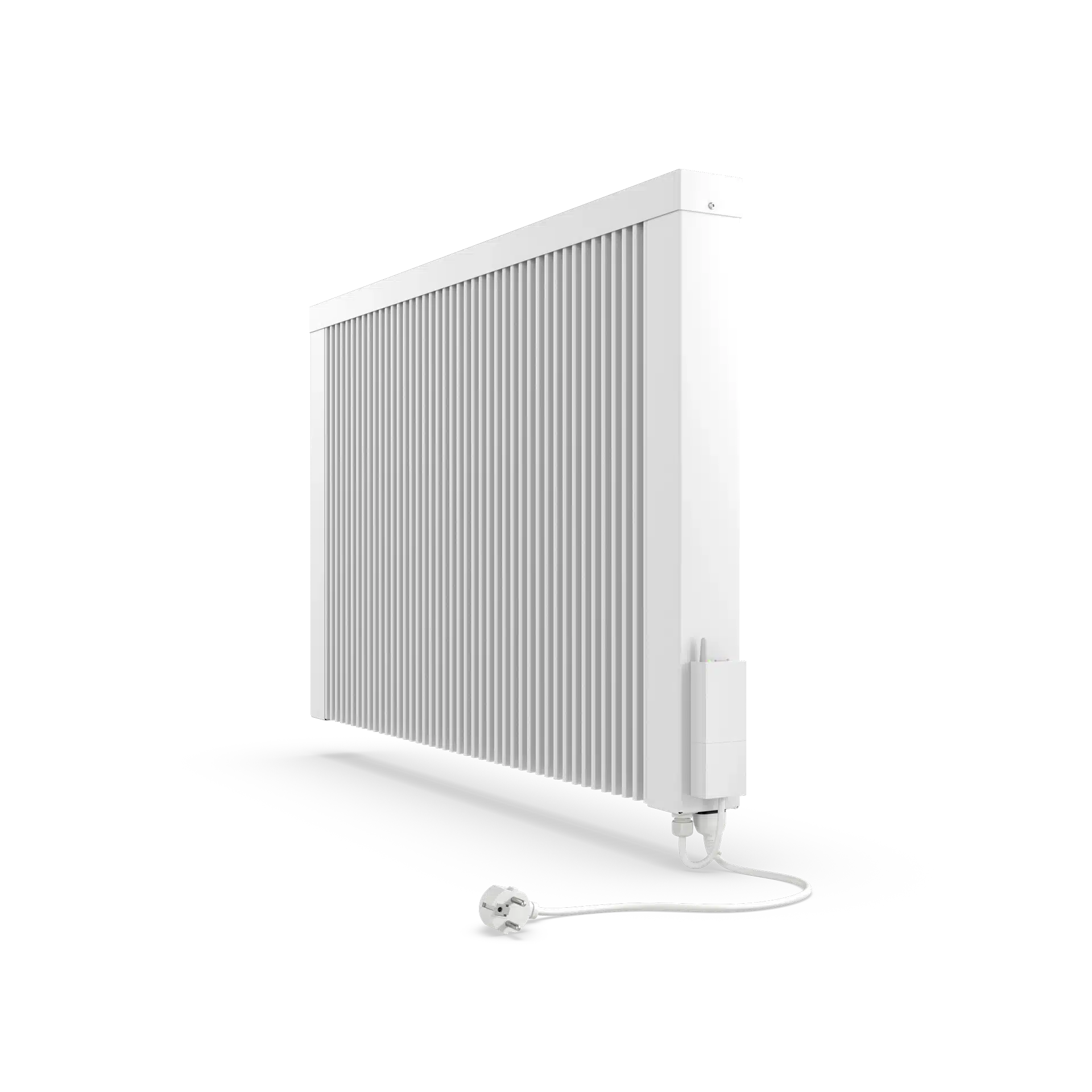

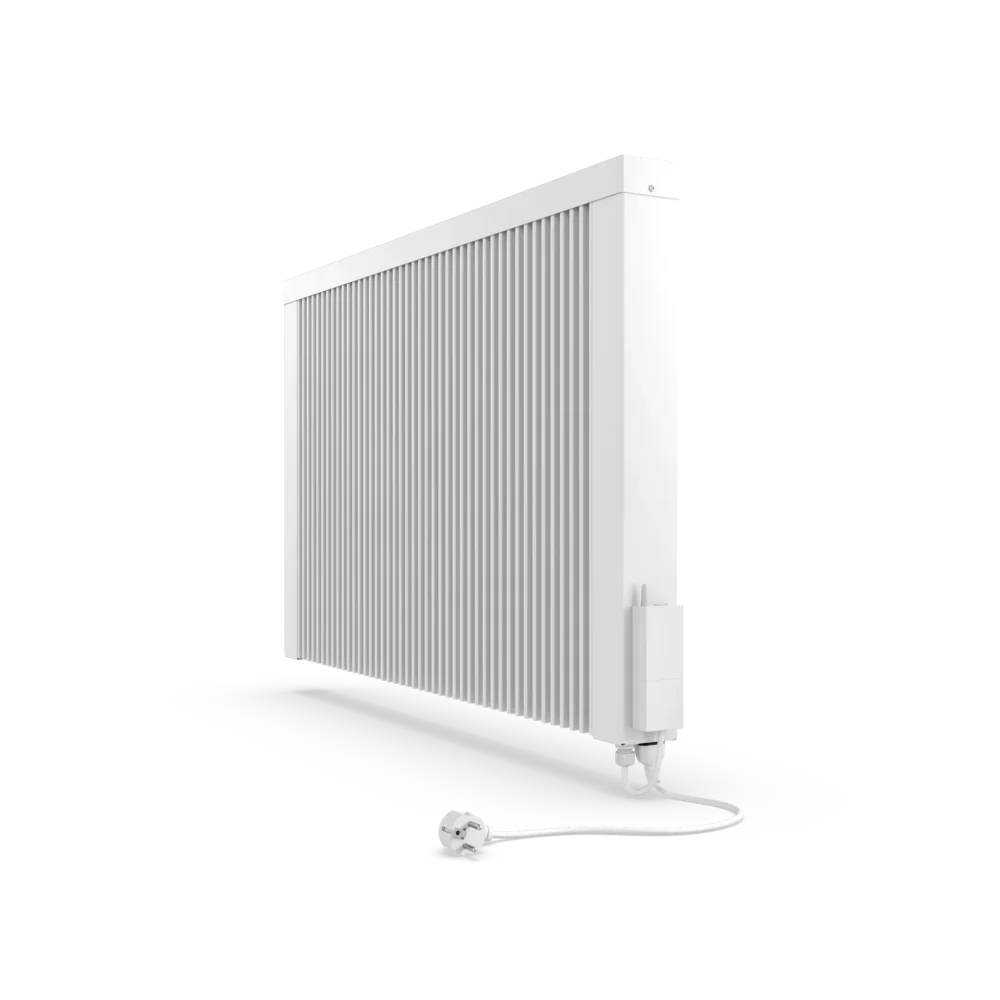

TECHNOTHERM Combination Heater CHM RF

Series Combination Heater CHM 500 with RF receiver

The TECHNOTHERM CHM RF combination heater combines direct heating and partial storage heating in one unit. An integrated ceramic storage core provides rapid heat and stores energy for sustained heat release. The flat white metal housing is only approx. 7 cm deep and is ideal for wall mounting. A pre-installed RF radio receiver enables connection to an external room thermostat, e.g. TPF-Eco (available separately). The heaters are available in power levels from 500 W to 2.0 kW and are supplied ready to connect with plug (protection class I).

High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.

Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Combination of instant and stored heat

The CHM DSM heats the room quickly and maintains the temperature longer via integrated heat storage cores. This ensures pleasant warmth even during short heating breaks.

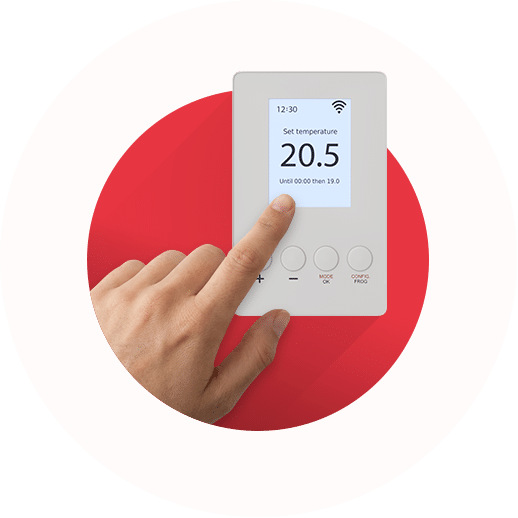

Convenient, programmable control

The integrated DSM thermostat offers weekly and daily programs, automatic mode, frost protection, open window detection, adaptive start function and an internet option. This allows the heater to adapt to daily routines and building characteristics and helps save electricity.

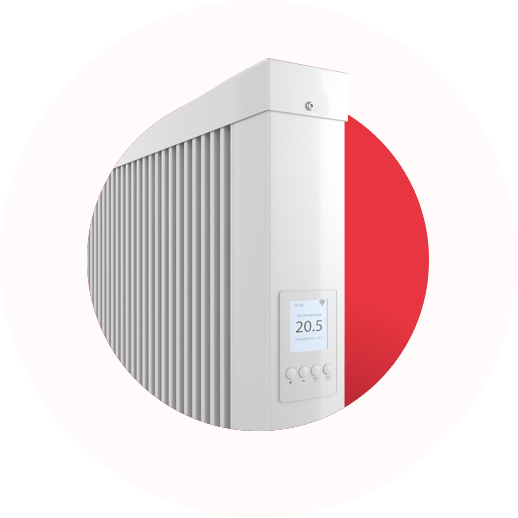

Slim wall unit with minimal effort

Only approx. 7 cm depth, wall mounting and various power ratings from 500 to 2000 watts make the combination heater suitable for many rooms, without major installation effort or structural modifications.

Fast heat-up

The integrated direct heating element provides instant heat – ideal when rooms need to be heated quickly.

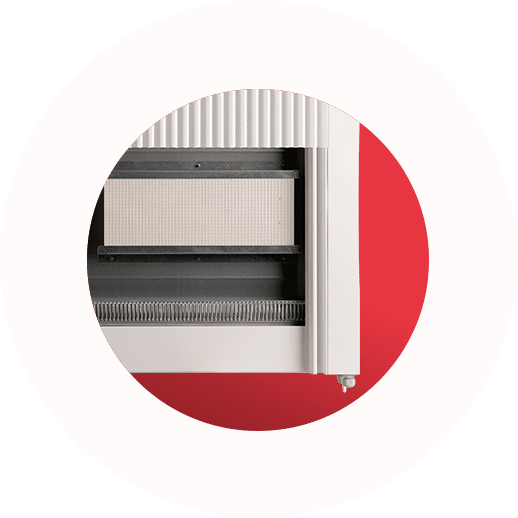

Long-lasting heat through ceramic storage

The ceramic storage core stores heat and releases it gradually – for even and sustained warmth.

Radiant and Convection Heat Combined

The balanced combination ensures a comfortable, constant room climate.

Slim white housing

The approx. 7 cm deep white metal housing enables discreet and modern wall mounting.

Integrated RF wireless receiver

Compatible with external thermostats (e.g. TPF-Eco) – for flexible, wireless control and customizable heating programs.

Intelligent power adjustment

Heat output modulation is controlled via the external thermostat – including time programs and open window detection.

Power levels from 500 W to 2.0 kW

Available from 0.5 to 2.0 kW output, including plug connection (protection class I) – ready for immediate use.

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM Combination Heater CHM 500 RF	0.65 kW	380 x 630 x 70 mm	10 kg	440605950	Inquire now
TECHNOTHERM Combination Heater CHM 1000 RF	1 kW	680 x 630 x 70 mm	16.5 kg	440610950	Inquire now
TECHNOTHERM Combination Heater CHM 1500 RF	1.5 kW	980 x 630 x 70 mm	23.5 kg	440615950	Inquire now
TECHNOTHERM Combination Heater CHM 2000 RF	2 kW	980 x 630 x 70 mm	23.5 kg	440620950	Inquire now
TECHNOTHERM Combination Heater CHM H 1000 RF	1.0 kW	380 x 1240 x 7 mm	16.5 kg	440110950	Inquire now

More Products

TECHNOTHERM Frost Guard

The TECHNOTHERM FW 501 frost guard is a small electric convection heater for frost protection and light temper…

Go to Product

TECHNOTHERM Church Pew Heating KBH

The TECHNOTHERM KBH church pew heating consists of electric radiant heating panels that are permanently mounte…

Go to Product

TECHNOTHERM Combination Heater CVS E RT

The CVS E RT combination heater from TECHNOTHERM is a direct-heating freestanding convector with a powerful al…

Go to Product

TECHNOTHERM Combination Heater CPH E RT

The CPH E RT combination heater from TECHNOTHERM is a direct heating floor convector with aluminum heating ele…

Go to Product

Electric Heating, simply better

installed. planned. invested.

Downloads

All information, such as installation and operating instructions as well as data sheets, can be found in our download area.
