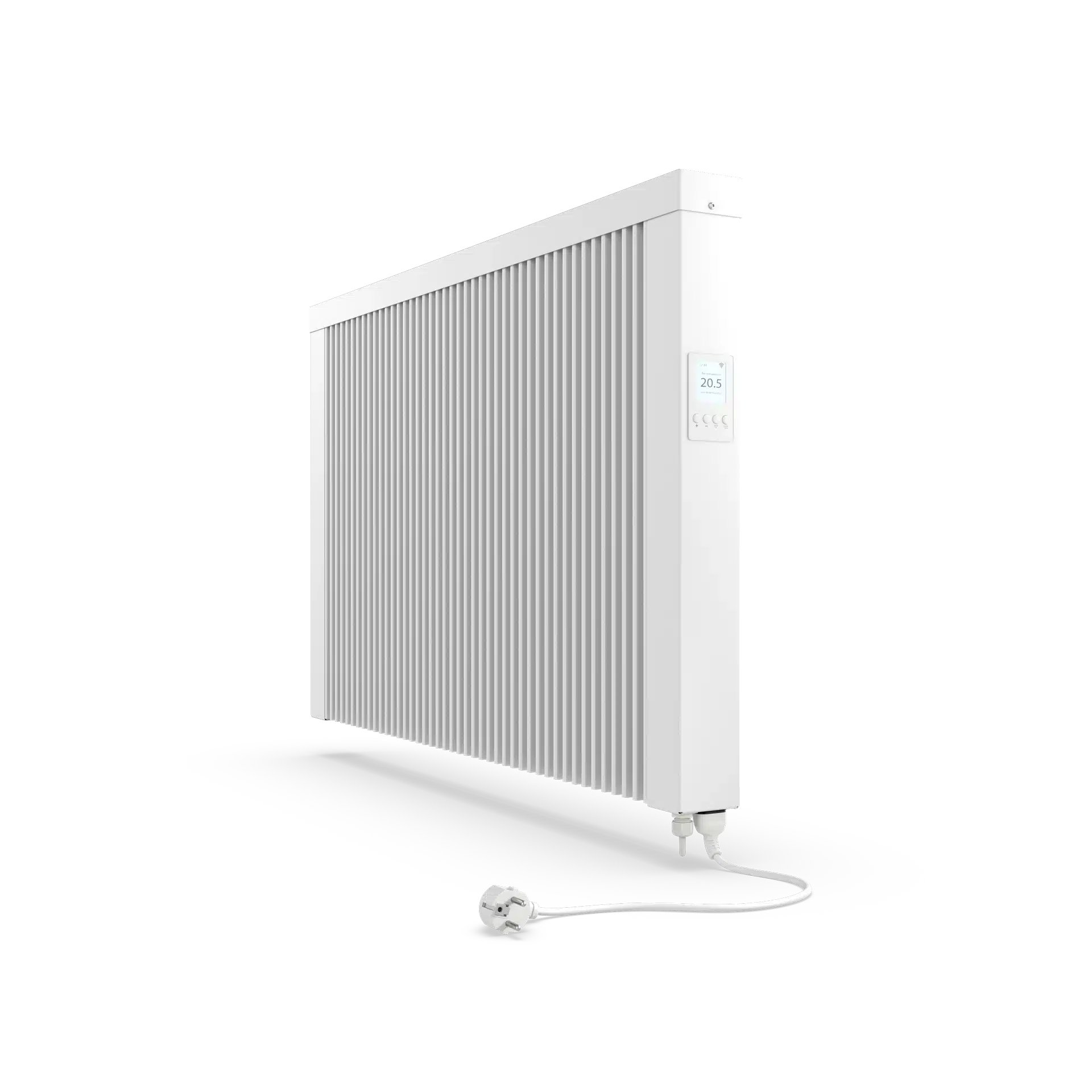

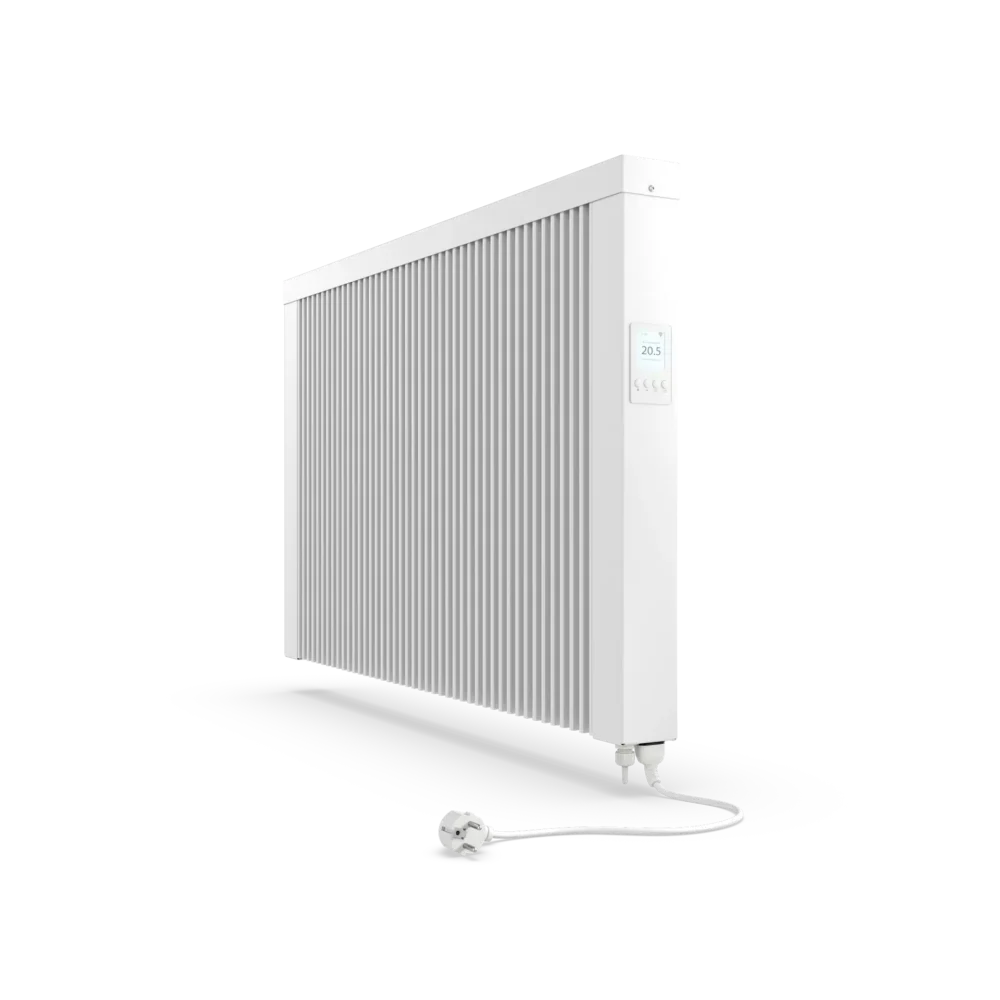

TECHNOTHERM Combination Heater CHM DSM

Series Combination Heater CHM 500 DSM with DSM Thermostat

The TECHNOTHERM CHM DSM combination heater combines direct heating and partial storage heating in one unit. An integrated ceramic storage core enables rapid heat output and stores energy for long-lasting heating performance. The flat white metal housing is only approx. 7 cm deep and is ideal for wall mounting. The smart DSM thermostat electronically controls room temperature with weekday programs, adaptive heating start, and open window detection, and allows internet control via app. The models are available in power levels from 500 W to 2.0 kW and are supplied ready to connect with plug (protection class I).

High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.

Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Combination of fast and stored heat

The CHM DSM heats the room quickly and maintains the temperature longer through integrated heat storage cores. This ensures pleasant warmth even during short heating breaks.

Comfortable, programmable control

The integrated DSM thermostat offers weekly and daily programs, automatic operation, frost protection, open window detection, adaptive start function, and an internet option. This allows the heater to adapt to daily routines and building characteristics while helping to save electricity.

Slim wall unit with minimal effort

Only approx. 7 cm depth, wall mounting, and various power ratings from 500 to 2000 watts make the combination heater suitable for many rooms without major installation effort or structural modifications.

Fast heat-up

The direct heating element provides exceptionally fast heat – ideal for rooms that need to be heated immediately.

Long-lasting heat through ceramic storage

An integrated ceramic storage core absorbs heat and releases it with a time delay – for pleasantly constant temperatures.

Radiant and Convection Heat Combined

The combination of direct radiant heat and fast convection creates a uniform and comfortable room climate.

Slim white housing

The approx. 7 cm deep white metal housing blends discreetly into any room and is ideal for wall mounting.

Smart DSM thermostat

The DSM thermostat offers programs, adaptive start function, and precise temperature control – for maximum comfort and energy efficiency.

Internet Control via App or PC

Convenient programming and remote access – full control over your heating, even when away.

Intelligent power adjustment

Automatic modulation of heating output including open window detection ensures efficient, demand-based heating operation.

Power levels from 500 W to 2.0 kW

Wide model range from 0.5 to 2.0 kW, including plug connection (protection class I) – ready for immediate use.

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM Combination Heater CHM 500 DSM	0.65 kW	380 x 630 x 70 mm	10 kg	440605330	Inquire now
TECHNOTHERM Combination Heater CHM 1000 DSM	1 kW	680 x 630 x 70 mm	16.5 kg	440610330	Inquire now
TECHNOTHERM Combination Heater CHM 1500 DSM	1.5 kW	980 x 630 x 70 mm	23.5 kg	440615330	Inquire now
TECHNOTHERM Combination Heater CHM 2000 DSM	2 kW	980 x 630 x 70 mm	23.5 kg	440620330	Inquire now
TECHNOTHERM Combination Heater CHM H 1000 DSM	1.0 kW	380 x 1240 x 7 mm	16.5 kg	440110330	Inquire now
