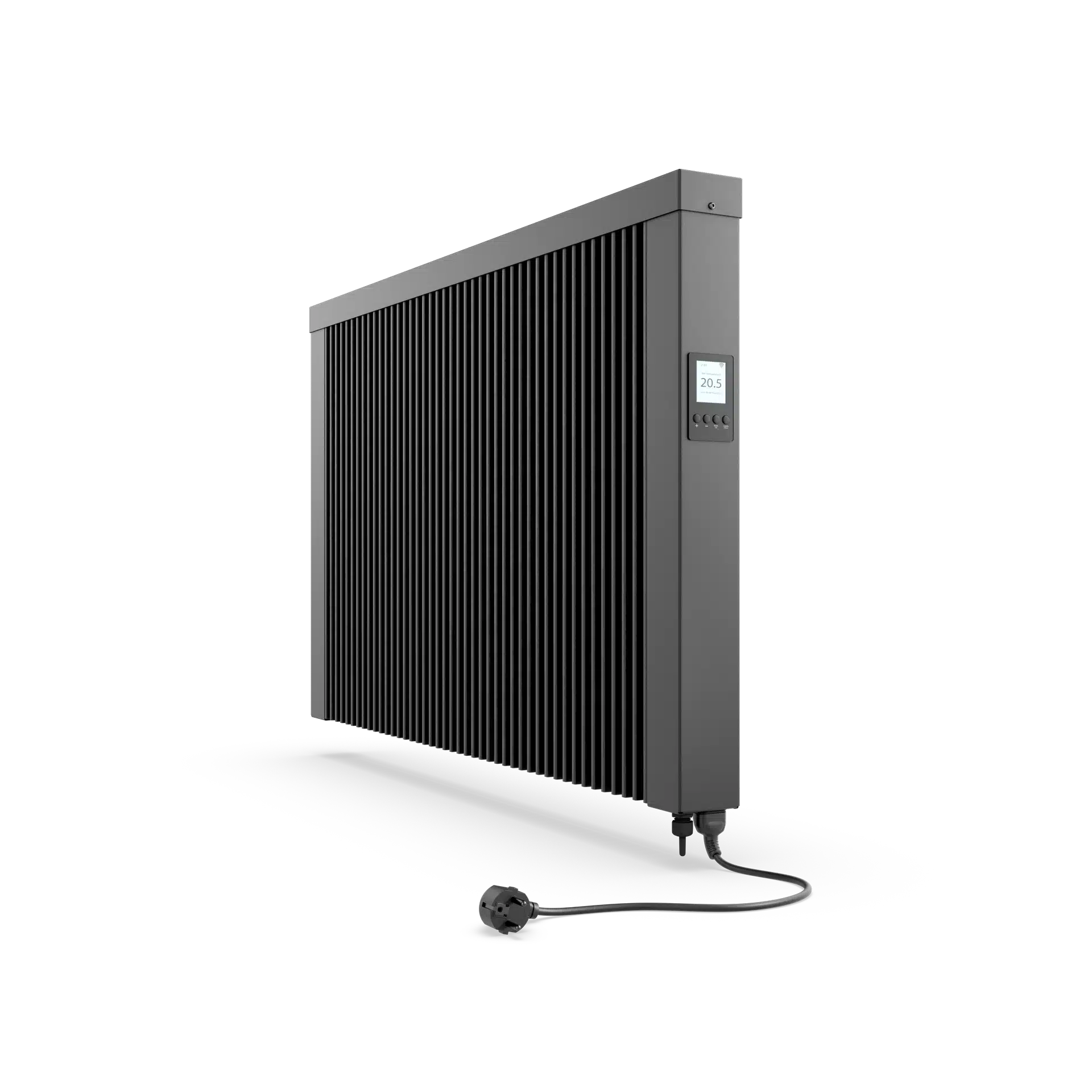

TECHNOTHERM CHM DSM Z Combination Heater

Series CHM-Z 500 combination heater with DSM thermostat, anthracite

The TECHNOTHERM CHM DSM Z combination heater combines direct heating and partial storage heating in one device. An integrated ceramic storage stone provides rapid heat and stores energy for long-lasting heat emission. The slim anthracite metal housing is only approx. 7 cm deep and is ideal for wall mounting. The smart DSM thermostat regulates room temperature electronically with weekly programs, adaptive start, and open-window detection, and enables internet control via app. Available in power levels from 500 W to 2.0 kW, ready to plug in with Protection Class I.

High-quality technology – developed and manufactured in-house by TECHNOTHERM in Germany.

Safe and EU-compliant: Our systems meet all European safety and environmental requirements.

Tap icon/logo for more information

Combination of rapid and stored heat

The CHM DSM heats the room quickly and maintains a stable temperature longer via integrated heat storage stones. This ensures pleasant warmth even during short heating breaks.

Convenient, programmable control

The integrated DSM thermostat offers weekly and daily programs, automatic mode, frost protection, open-window detection, adaptive start, and an internet option. This allows the heater to adapt to your daily routine and the building, helping to save electricity.

Slim wall-mounted unit with minimal effort

With a depth of only approx. 7 cm, wall mounting, and various power ratings from 500 to 2000 watts, this combination heater is suitable for many rooms without extensive installation or structural changes.

Fast heat-up

The direct heating element ensures rapid heating – ideal for rooms requiring immediate comfort.

Long-lasting heat via ceramic storage

The integrated ceramic storage stone stores heat and releases it gradually – for consistent, long-lasting warmth.

Radiant and Convection Heat Combined

Optimal blend of direct radiant heat and fast convection – for a perfectly cozy indoor climate.

Slim anthracite housing

The modern, approx. 7 cm deep metal housing in anthracite is perfect for stylish, discreet wall mounting.

Smart DSM thermostat

With daily and weekly programs, adaptive start function, and precise temperature control – convenient and energy-efficient.

Internet Control via App or PC

Programmable and controllable via smartphone or PC – maximum flexibility, even on the go.

Intelligent power adjustment

Automatic heat output modulation including open-window detection ensures efficient, demand-based operation.

Power levels from 500 W to 2.0 kW

Wide selection from 0.5 to 2.0 kW, including plug connection (Protection Class I) – ready for immediate use.

Technical Data

Model	Performance	Dimensions (W x H x D)	weight [approx.]	Order number	Inquire
TECHNOTHERM CHM 500 DSM Z Combination Heater	0.65 kW	380 x 630 x 70 mm	10 kg	440605730	Inquire now
TECHNOTHERM CHM 1000 DSM Z Combination Heater	1 kW	680 x 630 x 70 mm	16.5 kg	440610730	Inquire now
TECHNOTHERM CHM 1500 DSM Z Combination Heater	1.5 kW	980 x 630 x 70 mm	23.5 kg	440615730	Inquire now
TECHNOTHERM CHM 2000 DSM Z Combination Heater	2 kW	980 x 630 x 70 mm	23.5 kg	440620730	Inquire now
TECHNOTHERM CHM H 1000 DSM Z Combination Heater	1.0 kW	380 x 1240 x 7 mm	16.5 kg	440110730	Inquire now
